Speed Passion Reventon-Regler

Speed Passion stellt die neue Reventon-Reglerserie vor. Größte Besonderheit der Reventon-Regler ist die Möglichkeit, Einstellungen drahtlos über eine Smartphone App (iOS & Android) vornehmen zu können. So lassen sich beispielsweise fertige Setups der Speed Passion-Teamfahrer herunterladen und auf den Regler übertragen.

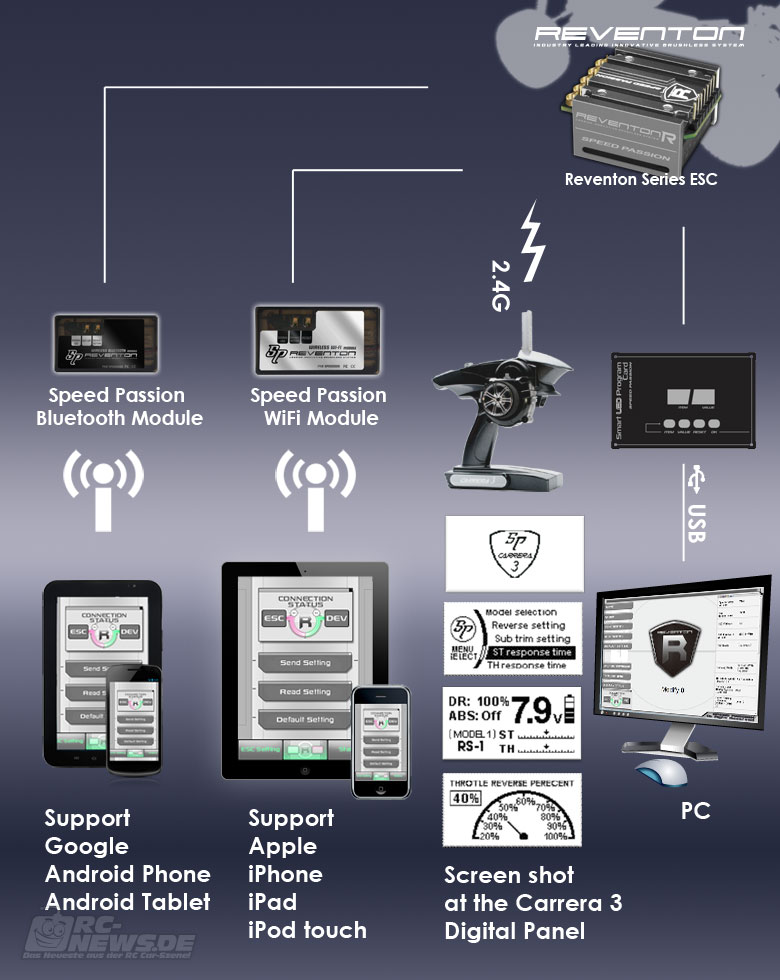

Auf der oberen Grafik kann man gut die Möglichkeiten erkennen, mit denen man die Reventon-Fahrtenregler einstellen kann. Es gibt ein Bluetooth- ein WiFi- und ein USB-Modul für Android, iOS bzw. Windows. Daneben wird den Reglern eine „Smart LED Programmer Card“ beigelegt, um auch ohne iPhone etc. Einstellungen vornehmen zu können.

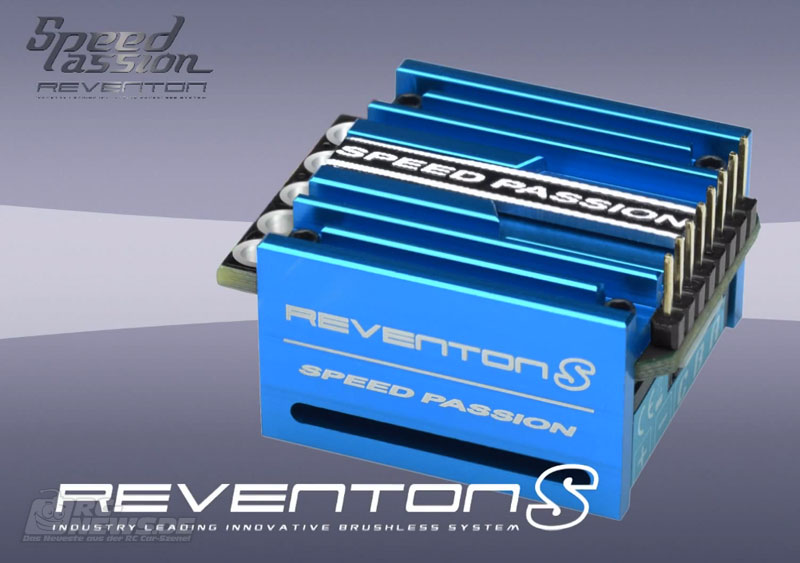

Der Speed Passion Reventon S kann mit Motoren bis 9,5 Turns betrieben werden.

Technische Daten Reventon S

• Belastbarkeit dauer: 40A
• Belastbarkeit kurzzeitig: 270A
• Akkus: Bis 2s LiPo/4-9 Zellen NiMH/2S & 3S LiFe
• Motoren: sensorlos/sensorgesteuert
• Abmessungen: 33mm x 33mm x 19mm

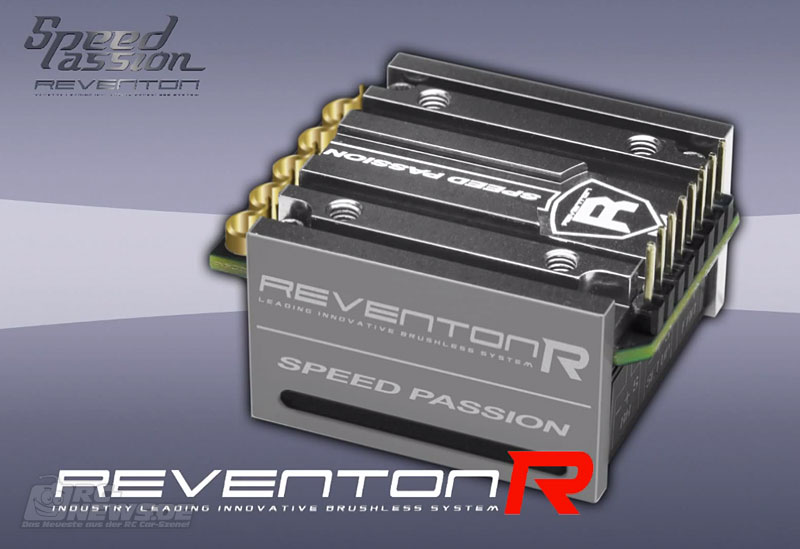

Die Racing-Variante Speed Passion Reventon R kann Motoren bis 5,5 Turns verkraften.

Technische Daten Reventon R

• Belastbarkeit dauer: 70A
• Belastbarkeit kurzzeitig: 540A
• Akkus: Bis 2s LiPo/4-9 Zellen NiMH/2S & 3S LiFe
• Motoren: sensorlos/sensorgesteuert
• Abmessungen: 33mm x 33mm x 19mm

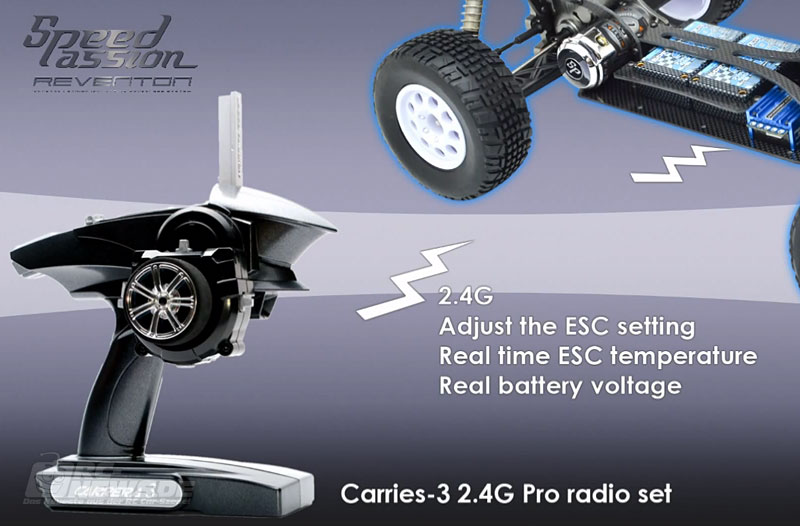

Die kommende Speed Passion Carrera 3-Fernsteuerung kann sich direkt mit dem Regler verbinden und bietet zusätzlich Telemetrie-Funktionen wie die Kontrolle der Akkuspannung, der Regler-Temperatur und der Motor-Drehzahl.

Industry Leading Innovative Brushless System
The current world champion title holder and the fastest speed controller on the market is getting better, smaller, and more refined to continue leading the R/C industry in speed controller technology. Speed Passion is proud to present the all new REVENTON Brushless speed controller; designed with Speed Passion’s own „Patented“ ESC Wireless Control Technology — WCT which will enable ESC setting changes to be performed wirelessly with Apple devices such as the I-Phone, I-PAD, and I-Pod Touch. In addition, support for Android based smart phones and tablets, as well as PCs (Windows based, including Windows 7) will be provided.

Speed Passion own „Patented“ ESC Wireless Control Technology — WCT
The Speed Passion REVENTON ESC can be easily updated, adjusted, programmed by your I-phone, I-pod touch or I-pad. Android base smart phones/tablets will be supported and plans for Microsoft Windows Mobile device support will follow. Optional Windows PC interface (Windows XP, Vista and 7) will also be available to adjust the ESC settings. Wi-Fi and Bluetooth technology will be used to allow racers to save their ESC setting wirelessly from the ESC to their smart phone or tablet, or directly to a PC. The REVENTON’s interface will allow racers profiles and ESC settings to be shared directly from the Speed Passion website. Speed Passion factory driver settings which are posted on the Speed Passion website can also be downloaded directly to the REVENTON ESC via the smartphone/tablet wireless interface or the direct PC interface (Wi-Fi and Bluetooth connection module are optional and are not included with the Reventon ESC).

Reventon ESC series will also feature the latest racing software to accommodate customer’s choice of racing:

• Mod1 – MODIFIED software based on our 2010 1/10 EP Touring Car World Championship and 2010, 2011 Euro Off Road Championship team drivers program development.
• Stock0 – The most popular ROAR legal ZERO TIMING „Stock – Blinky“ software approved and used for races such as ETS 2010, 2011, TITC 2010, TITC 2011, IIC (USA).
• Stock1 – The open timing software as known as „Open Stock“ with advanced Supercharger timing features.
• RockCrawler1 – New and enhanced software from our Rock Crawler Series.
• Drift1 – New and enhanced software from our Drifter series.

Speed Passion own „Patented“ ESC Radio Access Technology – RAT
The Reventon’s ESC can also be adjusted wirelessly via our upcoming Carries-3 2.4G Pro radio set. Speed Passions RAT is provides real time ESC status, temperature and battery voltage and has an optional monitor feature for motor speed.

New Smart LED Programmer Card
Also included in the ESC package (except Reventon Stock Club Race) is the brand new Smart LED Programmer Card with built in USB connection port. The programmer card will allow the racer to adjust ESC settings, upgrade ESC software, and view the last recorded ESC temperature and battery voltage.

Danke an Markus für den Newstipp! 🙂
Quelle: Speedpassion
